Air Filter Paper Pleating Machine Automatic Rotary Pleaters 220V

1 set
MOQ
$5500~$56800/set
Price
Air Filter Paper Pleating Machine Automatic Rotary Pleaters 220V
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Paper Pleating Machine
Condition: New
Weight (kg): 450
Place Of Origin: Anhui, China
Brand Name: TONGCHEN
Warranty: 1 Year
Key Selling Points: High Productivity
Power: 220
Highlight:

Air Filter Paper Pleating Machine

,

Automatic Rotary Pleaters

,

Rotary Pleaters 220V
Basic Infomation
Place of Origin: Bengbu, China
Brand Name: TC
Model Number: TCZZ~180
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 15~45 work days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Day
Product Description
Air Filter Paper Pleating Machine Automatic Rotary Pleaters 220V
Product Overview
The automatic rotary pleating machine is designed for precision pleating of air filter paper, suitable for various materials including non-woven fabric, carbon fiber, wire mesh, and active carbon. This industrial-grade equipment offers adjustable speed and width settings to accommodate diverse production requirements.
Key Features
  • Automatic rotary pleating mechanism for consistent results
  • Adjustable paper feeding speed from 0.5m/min to 25m/min
  • Handles material widths from 25mm to 600mm
  • 380V/50Hz power supply with 0.55kw motor power
  • Operates at 0.6Mpa working air pressure
  • Compact dimensions of 1280×1100×1200mm (L×W×H)

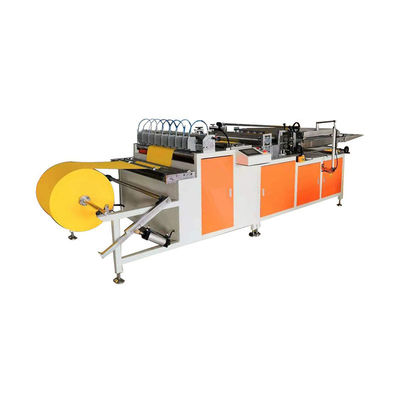

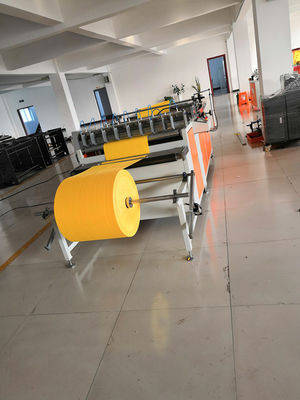

Air Filter Paper Pleating Machine Automatic Rotary Pleaters 220V 0 Air Filter Paper Pleating Machine Automatic Rotary Pleaters 220V 1
Technical Specifications
Parameter Value
Maximum Width 800mm
Minimum Width 50mm
Machine Type Paper Folding Machine
Warranty 1 year
Material Width 800mm
Speed 0-35m/min
Packing Wooden
Compatible Materials Non-woven, carbon fiber, wire mesh, active carbon
Voltage 380V/50Hz
Production Line Specifications
Parameter Value
Width Range 90~320mm
Pleating Height 20~58mm
Speed 5~25m/min (adjustable)
Temperature Range 0~300°C
Heater Power 8.5kw
Pleater Transmission Power 0.75kw
Conveyer Belt Power 0.25kw
Conveyer Belt Speed 0~5m/min (adjustable)
Working Air Pressure 0.6Mpa
Power Supply 380V/50HZ
Machine Weight 1100kg
Machine Dimensions 7500×950×1750mm (L×W×H)
About Bengbu Tongchen Automation Technology Equipment Co., Ltd.
We are a professional manufacturer specializing in the development, design, and production of filter manufacturing equipment. Our product range includes paper folding equipment, rotating machines, diesel engines, large air filter production equipment, and pleating machines. Committed to quality and innovation, we provide advanced, practical, and efficient solutions that meet both domestic and international standards.

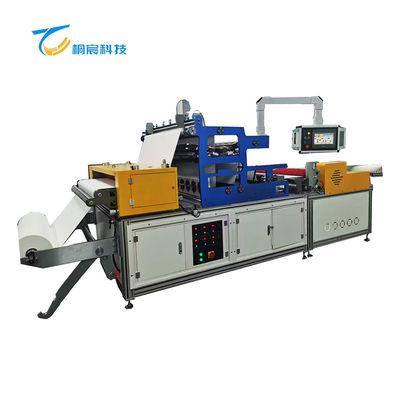

Air Filter Paper Pleating Machine Automatic Rotary Pleaters 220V 2
Note: Customized products are available. Please contact our customer service for detailed product information and pricing. Volume discounts available.
