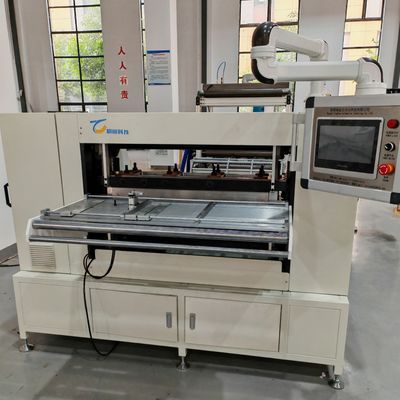

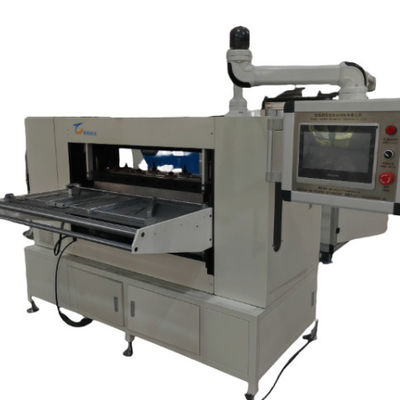

380V 50Hz HEPA Filter Pleating Machine High Efficiency Filter Paper Folding Machine All In One

Fastfold All-in-One High-Efficiency Paper Folding Machine

I. Core Parameters, Exceptional Performance

• Maximum product width: 850mm
• Overall dimensions: 1800×1500×2250mm (L×W×H) (customizable dimensions available), suitable for various production scenarios.
• Total machine weight: 450kg, stable and reliable.

• Power supply: 380V - 50Hz
• Main motor power: 0.75kW
• Lifting motor power: 0.4kW
• Preheating power: 6kW
• Strong power ensures efficient operation.

• Adjustable folding height range: 20 - 300mm (customizable to your needs), compatible with PP, non-woven fabric, carbon 夹布 (carbon-impregnated fabric), and other materials.
• Folding speed: 0 - 200 folds/minute stepless adjustment, flexibly adapting to different production rhythms.

• Temperature control range: 0 - 300°C (ambient temperature to 300°C), ensuring precise temperature regulation.
• Working air pressure: 0.6MPa, ensuring stable operation of all components.

II. Powerful Functions, Efficient & Intelligent

• The paper feeding platform is equipped with a positioning device to ensure smooth input of materials of any size without deviation, laying the foundation for high-quality folding.

• The dot counting device supports free control via the display screen, facilitating production management and data statistics to improve work efficiency.

• Adopts servo automatic height adjustment and synchronous belt structure for faster folding speed and higher efficiency.
• Upper and lower blades can be fine-tuned, with free control over opening angle and paper pressing angle, achieving high-precision folding.

• The heating device consists of upper and lower heating plates, each with three heating discs. Heating temperature can be freely adjusted via the display screen to ensure uniform material heating and better folding results.

III. Product Highlights, Unique Advantages

• Uses full-servo electronic cam control technology to freely adjust folding angles (upper/lower angles, upper blade angle, lower blade angle, opening angle, etc.), with fine-tuning functions for blades to further improve precision.
• Adaptable to folding various material shapes, empowering your production with superior performance. It is the ultimate choice for pursuing high efficiency and quality!
