Name: Glass Fiber Unwinding Machine And Slitting Machine Customized For Glass fiber pleated paper production
Brand: Bengbu Tongchen Automation Technology Co., ltd
SKU: TCFQ
Price: 11,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Glass Fiber Unwinding Machine

Construction: Hepa Filter

Type: Filter Paper Folding Machine

Dimension: BengBu,China

Welder: Spot Welding

Condition State: New

Weight: 2011kg

Highlight:

Glass Fiber Unwinding Machine

Glass Fiber Slitting Machine

Slitting Machine Customized

Basic Infomation

Place of Origin: Bengbu, China

Brand Name: TONGCHEN

Model Number: TCFQ

Payment & Shipping Terms

Packaging Details: wooden box

Delivery Time: 15~45 work days

Payment Terms: T/T

Supply Ability: 30 Sets per Day

Gallery

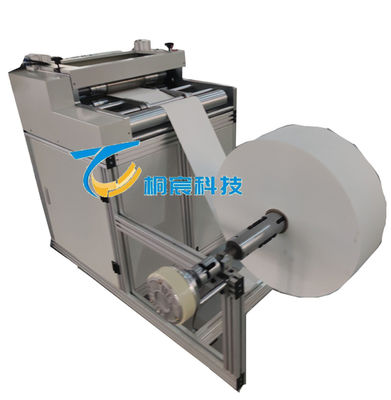

Glass Fiber Unwinding Machine And Slitting Machine Customized For Glass fiber pleated paper production

Product Description

Glass fiber pleated paper production line unwinding machine and slitting machine

Customized products are available in various types. Each product has its own price. For detailed product information and to inquire about the price, please contact the customer service. The more quantity, the better price.

Products Description

This equipment is the front-end core device of the filter glass fiber gluing pleated paper production line without partitions, integrating automatic feeding, tension control and high-precision slitting functions. Designed specifically for glass fiber filter paper and composite glass fiber materials, through a servo drive system and intelligent deviation correction technology, large rolls of glass fiber materials are slit into small rolls of specified widths, meeting the high-precision requirements of subsequent pleating and gluing processes.

Glass Fiber Unwinding Machine And Slitting Machine Customized For Glass fiber pleated paper production 0

Product application
Core functions:
Realize the automatic feeding, tension control and precise slitting of glass fiber materials, providing raw materials of standard width for subsequent pleats.
Applicable scenarios:
Production line of high-efficiency filters without separators (HEPA/ULPA)
Production of high-temperature resistant fiberglass filters (such as boiler dust removal filter elements)
Pretreatment stage of glass fiber composite filter element (activated carbon + glass fiber)
Target industry:
Air purification equipment manufacturing (medical cleanroom, semiconductor factory filters)
Production of industrial dust removal equipment (high-temperature filters for cement plants and steel mills)
The material pretreatment process of filter manufacturing (OEM/ODM) enterprises

Product Parameters

Product parameters for reference only, details consult customer service.

Machine Name	Glass fiber pleated paper production line unwinding machine and slitting machine
Applicable materials	Glass fiber filter paper, glass fiber composite paper, high-temperature resistant glass fiber cloth (moisture content ≤0.5%)
Slitting width range	50-850mm (Minimum slitting width 50mm, customizable widening up to 1500mm is supported)
Slitting accuracy	±0.15mm (static) /±0.3mm (dynamic, during high-speed operation)
Maximum load capacity of the discharge rack	500kg (standard single station) /1000kg (optional double station with automatic switching)
Slitting speed	0-180m/min (adjustable, depending on the material thickness. When the glass fiber is 0.5mm, it is recommended to be ≤150m/min)

Company Profile

Bengbu Tongchen Automation Technology Equipment Co., Ltd.

A Leading Innovator in Filter Manufacturing Automation

As a professional developer, designer, and manufacturer of filter production equipment, Bengbu Tongchen is headquartered in Bengbu—known as the "Pearl City," a vital transportation hub, cultural heritage city, and industrial center in China. Specializing in advanced automation solutions, our core portfolio includes:

Paper pleating systems

Rotary machinery

Diesel engine filter production lines

Large air filter manufacturing equipment

Partitioned/partitionless filter production lines for purification industries

High-precision pleating machines

Partitionless glass fiber strip production lines

Contact us today to explore how our automation expertise can elevate your filter manufacturing capabilities.

Our Advantages

Integrity & Customer-Centric Approach: Upholding credit priority and customer focus to build long-term trust.
Quality Assurance: Rigorous process control, real-time quality tracking, and rapid objection handling, exceeding domestic standards and aligning with international factory control benchmarks.
Operational Excellence: Punctual delivery and precise understanding of customer needs ensure seamless collaboration.
Partnership Vision: Committed to sincere cooperation and mutual growth, consistently meeting and exceeding product quality expectations.
