Name: Fully Automatic Filter Paper Pleating Machine Gluing Filter Production Line 220V
Brand: Bengbu Tongchen Automation Technology Co., ltd
SKU: LTGYG700N
Price: 9,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Filter Paper Pleating Machine

Construction: Hepa Filter

Place Of Origin: Anhui, China

Function: Folding Paper

Weight: 500

Warranty: 1 Year

Material: Non-woven,carbon Fiber,wire Mesh ,active Carbon

Frequency: 50Hz

Motor Power: 0.75kw

Voltage: 220V

Core Components: PLC, Motor, Other

Highlight:

Automatic Filter Paper Pleating Machine

Gluing Filter Production Line

Filter Production Line 220V

Basic Infomation

Place of Origin: China

Brand Name: TongChen

Model Number: LTGYG700N

Payment & Shipping Terms

Packaging Details: wooden box

Delivery Time: 15~45 work days

Payment Terms: T/T

Supply Ability: 60 Set/Sets per Day

Gallery

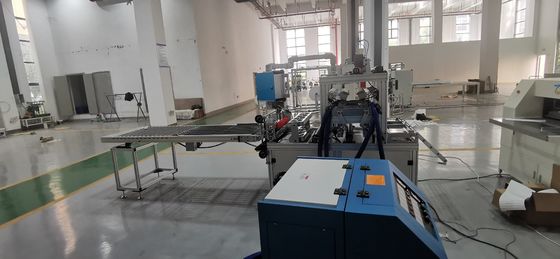

Fully Automatic Filter Paper Pleating Machine Gluing Filter Production Line 220V

Product Description

Fully automatic paper making and gluing production line without partitions

Customized products are available in various types. Each product has its own price. For detailed product information and to inquire about the price, please contact the customer service. The more quantity, the better price.

listing 1 motor configuration: digital servo motors and drives,

brand: INOVANCE (INOVANCE) quantity: 5 sets of 2 high precision gear reducer

Products Description

Fully Automatic Filter Paper Pleating Machine Gluing Filter Production Line 220V 0

Product Paramenters

Product parameters for reference only, details consult customer service.

Machine Name	Fully automatic paper making and gluing production line without partitions
Model	LTGYG1000
Max width	<=1100
Pleating depth	30-300mm
Pleating speed	10-20pleats/min
Pre-heat-power	0.75kw
Power voltage	220/380V/50HZ
Raw material coil diameter	<=850mm
Feature	can adjustable the pleating height by computer needn't change the pleating knife by hand
Feature		usage air filter,oil filter,water filter,cabin filter ,Pre-filter
Material	non-woven,carbon fiber,wire mesh ,active carbon

Company Profile

Bengbu Tongchen Electromechanical Technology Filter Equipment Co.Ltd

Bengbu Tongchen Automation Technology Equipment Co., Ltd.is a professional company integrating the development, design, and production of filter manufacturing equipment. Located in the beautiful city of Bengbu, known as the "Pearl City"—an important transportation hub, densely populated cultural ancient city, and industrial base. Our main products include paper folding equipment, rotating machines, diesel engines, large air filter production equipment, partitionless and partitioned filter production equipment for the purification industry, pleating machines, and partitionless glass fiber strip production lines. The company will further develop advanced, practical, and efficient models for practical production, leading domestic trends and catering to international standards, making due contributions to China and the global filter industry. We prioritize product quality and service, which are key factors in making your brand more competitive in the global market. Tongchen Technology will become your most reliable mechanical solution provider, partner, and friend in China. We are ready to establish long-term business relationships with your company and welcome friends from all over the world.

Fully Automatic Filter Paper Pleating Machine Gluing Filter Production Line 220V 1

Fully Automatic Filter Paper Pleating Machine Gluing Filter Production Line 220V 2

Fully Automatic Filter Paper Pleating Machine Gluing Filter Production Line 220V 3

Fully Automatic Filter Paper Pleating Machine Gluing Filter Production Line 220V 4

Exhibition

Our Advantages

Credit first, customer first, quality satisfaction, punctual delivery, warm reception of new and old customers, accurate understanding of customer needs strict quality process control, timely quality tracking, rapid processing of quality objections, to better than domestic. The factory control standard of international standards meets the expectations and requirements of customers for the physical quality of products. We are willing to cooperate sincerely with you and develop hand in hand.

Intelligent operation and management:

-15-inch touch interface: Equipped with a user-friendly operating system, it supports functions such as pre-storage of production parameters (capable of storing)

1,Production capability:3m/min

2,Materials width:<=1000mm

3,Materials coil diameter:<=800mm

4,Heating power:3kw

5,Motor power:0.75kw

6,Power supply:380V/50HZ

7,Working air pressure:0.6MPa

8,M/C weight:500kg

9,M/C size:4000*1000*1250mm(L*W*H)

1,Production capability:3m/min

2,Materials width:<=1000mm

3,Materials coil diameter:<=800mm

4,Heating power:3kw

5,Motor power:0.75kw

6,Power supply:380V/50HZ

7,Working air pressure:0.6MPa

8,M/C weight:500kg

9,M/C size:4000*1000*1250mm(L*W*H)

≥50 sets of process formulas), real-time production capacity statistics, and self-diagnosis of equipment faults, lowering the operation threshold and enhancing production management efficiency.
- Data-driven production traceability: Integrating production data recording and export functions, it can trace the process parameters and quality data of each batch of products, helping enterprises achieve standardized management and quality control upgrades.

Application scenarios:

- Filtration field: High-efficiency/ultra-high-efficiency air filter elements, liquid filtration materials, etc.
- Insulation field: Base materials for electrical insulation boards, heat insulation materials for electronic devices;
- Composite materials: Automotive lightweight reinforcing materials, composite plates for aerospace.

Technical parameters:

Project indicators
The fiber diameter ranges from 5 to 25μm
Applicable raw materials: E glass, C glass and special glass fibers
The width range of the filter material is 300-1200mm
The pleat height ranges from 40 to 75mm
The drive mode is fully servo motor drive
The control accuracy is ±0.1mm for laser positioning and ±1℃ for temperature control
Production capacity efficiency Continuous production speed: 5-15m/min (adjustable)

Payment & Delivery

FAQ

Q1. What is the advantage about your company? A1. Our company has professional team and professional production line. Q2. Why should I choose your products? A2. Our products are high quality and low price. Q3. The logo and the color can be customized? A3. Yes, we welcome you to sample custom Q4. Any other good service your company can provide? A4. Yes,we can provide good after-sale and fast delivery.
