Home /Products/Filter Paper Pleating Machine/Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition

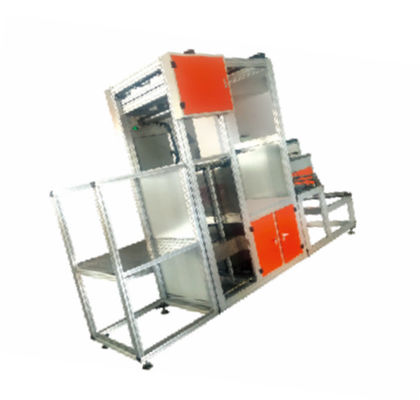

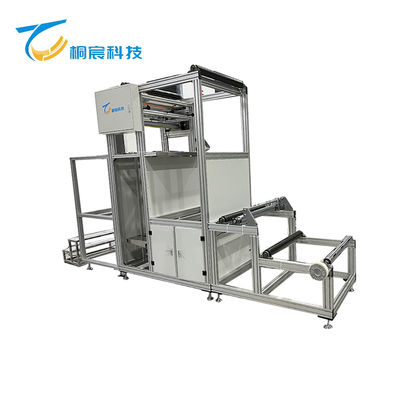

Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition

1set
MOQ
US$9000~100000/set
Price
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Use: Paper Cutting
Place Of Origin: Anhui, China
Brand Name: TONGCHEN
Weight: 500
Warranty: 1 Year
Material: Non-woven,carbon Fiber,wire Mesh ,active Carbon
Frequency: 50Hz
Motor Power: 0.75kw
Key Selling Points: Automatic, Competitive Price, High-accuracy, Eco-Friendly
Application: Industrial Paper Cutting Machine
Highlight:

50hz filter paper machine

,

automatic filter paper machine

,

50hz filter paper folding machine
Basic Infomation
Place of Origin: China
Brand Name: TongChen
Model Number: LTGYG700N
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 15~45 work days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Day
Product Description

Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition

Customized products are available in various types. Each product has its own price. For detailed product information and to inquire about the price, please contact the customer service. The more quantity, the better price.
The filter equipment is equipped with a frequency converter for stepless speed regulation and an automatic feeding device to reduce manual intervention
Products Description



Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 0

Product Paramenters
Product parameters for reference only, details consult customer service.
Machine Name

Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition
Model
TC-700
Max width
<=700
Pleating depth
5-300mm
Pleating speed
15-20pleats/min
Pre-heat-power
0.75kw
Power voltage
220/380V/50HZ
Raw material coil diameter
<=800mm
Feature
can adjustable the pleating height by computer needn't change the pleating knife by hand

usage air filter,oil filter,water filter,cabin filter ,Pre-filter
Material
non-woven,carbon fiber,wire mesh ,active carbon

Technical parameters

1, production capacity: 1-10 m/min 2, high folding products: 5-300 - mm 3, origami spacing: 3-30 mm4, the filter paper width: ≦ 700 mm5, motor power: 0.75 kw6, power supply voltage: 220 v. v. / 50 hz7,

working pressure: 0.6 Mpa8, machine weight: 500kg n9. Dimensions: 3560×1285×2460 (length × width × height) niI. Main Features n1. The width and height of this machine are controlled by a computer, and the height can be set arbitrarily. 2. This machine is equipped with fiberglass paper and formed aluminum foil or paper corrugations, which can be operated simultaneously on it.

3. This machine is automatically speed-regulated by a servo motor computer to adapt to different production conditions. Iii. Application Scope nThis machine is mainly used for the folding and molding of fiberglass materials with partitions.

Company Profile
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 1
Bengbu Tongchen Electromechanical Technology Filter Equipment Co.Ltd
Tongchen Electromechanical Technology Filter Equipment Co . , Ltd . is a professional company integrating the development , design and production of filter filter manufacturing equipment . Located in the beautiful Pearl City of Bengbu . It is an important transportation hub , densely populated , cultural ancient city , and industrial base . The main products are origami equipment , rotary machines , diesel engines , assembly equipment , large air filter production equipment and purification industry without partitions and partition . The company will further develop advanced , practical and efficient models to the actual production in the , lead the domestic trend , pay to international trends , and make due contributions to the filter and filter industry in China and the world . We put product quality and service first , which is the key factor that makes your brand more competitive in the global market . Tongchen Technology will be your most reliable supplier of mechanical solutions in China . suppliers , partners and friends , we are always ready to establish a long - term business relationship with your company . A warm welcome from all over the world .
Exhibition
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 2
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 3
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 4
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 5
Our Advantages
Credit first, customer first, quality satisfaction, punctual delivery, warm reception of new and old customers, accurate understanding of customer needs strict quality process control, timely quality tracking, rapid processing of quality objections, to better than domestic. The factory control standard of international standards meets the expectations and requirements of customers for the physical quality of products. We are willing to cooperate sincerely with you and develop hand in hand
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 6
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 7
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 8
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 9
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 10
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 11
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 12
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 13
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 14

Intelligent operation and management:

-15-inch touch interface: Equipped with a user-friendly operating system, it supports functions such as pre-storage of production parameters (capable of storing)

1,Production capability:3m/min

2,Materials width:<=1000mm

3,Materials coil diameter:<=800mm

4,Heating power:3kw

5,Motor power:0.75kw

6,Power supply:380V/50HZ

7,Working air pressure:0.6MPa

8,M/C weight:500kg

9,M/C size:4000*1000*1250mm(L*W*H)


1,Production capability:3m/min

2,Materials width:<=1000mm

3,Materials coil diameter:<=800mm

4,Heating power:3kw

5,Motor power:0.75kw

6,Power supply:380V/50HZ

7,Working air pressure:0.6MPa

8,M/C weight:500kg

9,M/C size:4000*1000*1250mm(L*W*H)

 ≥50 sets of process formulas), real-time production capacity statistics, and self-diagnosis of equipment faults, lowering the operation threshold and enhancing production management efficiency.
- Data-driven production traceability: Integrating production data recording and export functions, it can trace the process parameters and quality data of each batch of products, helping enterprises achieve standardized management and quality control upgrades.

Application scenarios:

- Filtration field: High-efficiency/ultra-high-efficiency air filter elements, liquid filtration materials, etc.
- Insulation field: Base materials for electrical insulation boards, heat insulation materials for electronic devices;
- Composite materials: Automotive lightweight reinforcing materials, composite plates for aerospace.

Technical parameters:

Project indicators
The fiber diameter ranges from 5 to 25μm
Applicable raw materials: E glass, C glass and special glass fibers
The width range of the filter material is 300-1200mm
The pleat height ranges from 40 to 75mm
The drive mode is fully servo motor drive
The control accuracy is ±0.1mm for laser positioning and ±1℃ for temperature control
Production capacity efficiency Continuous production speed: 5-15m/min (adjustable)

Payment & Delivery
Clapboard Pleating Hepa Glass Fiber Machine Filter Paper Folding Machine with Partition 15
FAQ
Q1. What is the advantage about your company? A1. Our company has professional team and professional production line. Q2. Why should I choose your products? A2. Our products are high quality and low price. Q3. The logo and the color can be customized? A3. Yes, we welcome you to sample custom Q4. Any other good service your company can provide? A4. Yes,we can provide good after-sale and fast delivery.
