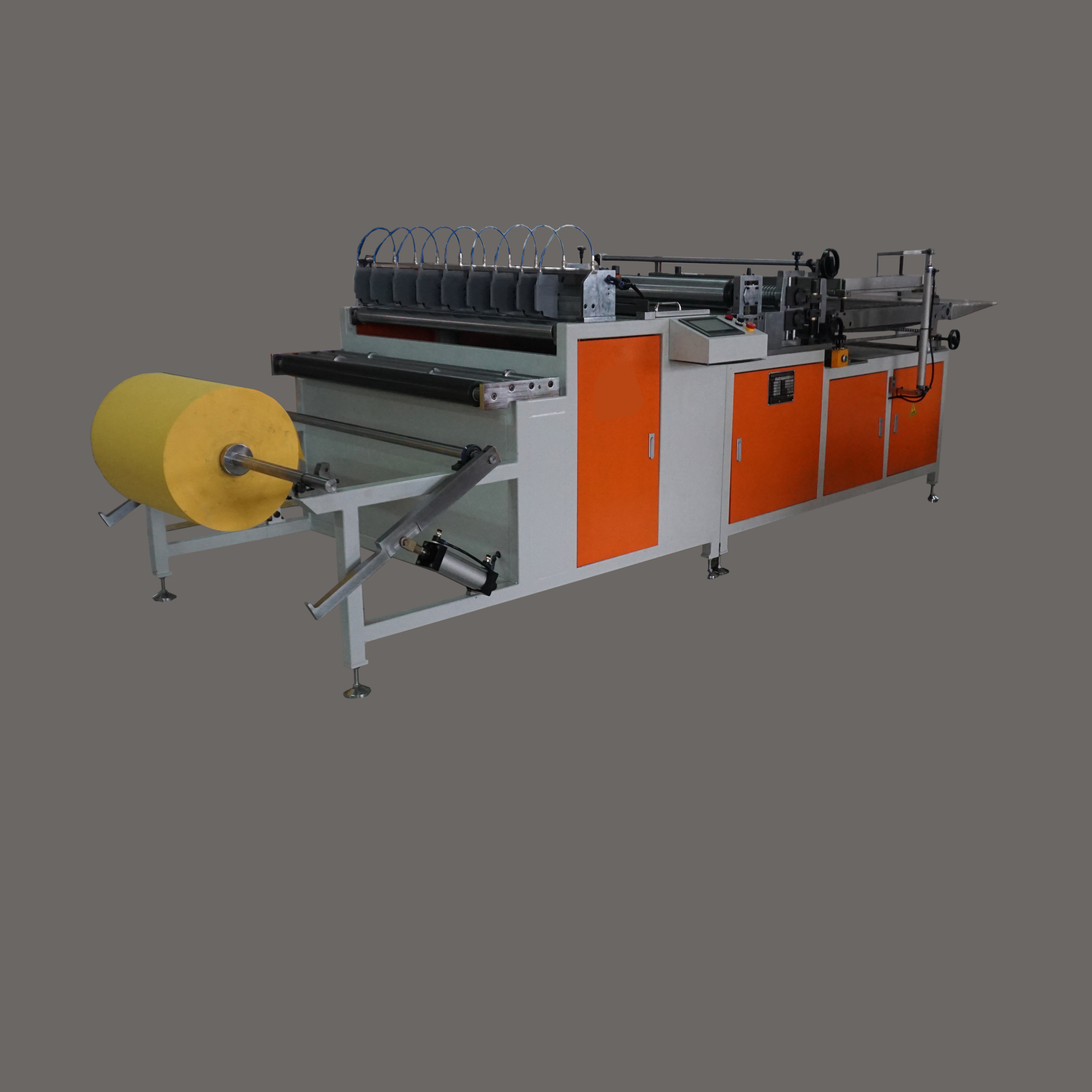

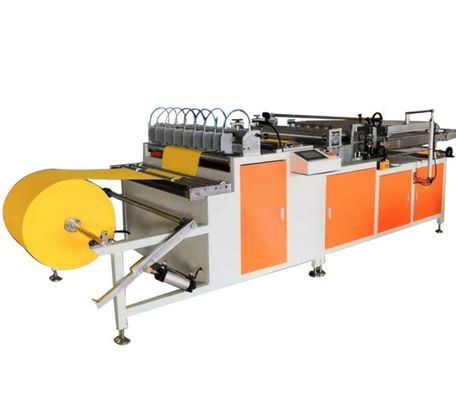

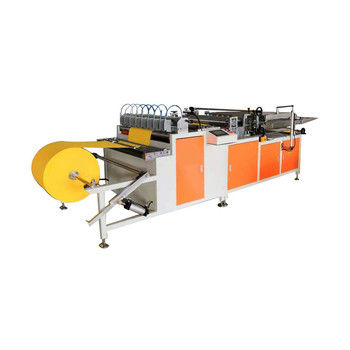

Intelligent Servo Drive Paper Pleat Machine High Precision Cylinder Paper Making Machine 60KW



The drum paper folding machine is an automated device commonly used in fields such as filter element processing. It is mainly used to fold filter paper and other materials into specific shapes (such as wavy) to meet the production requirements of products like filters.





- Structural composition: It usually includes a frame, feeding rollers, humidification device, heating device, roller folding device (including creasing mechanism and folding mechanism), and conveying device, etc. Some models are also equipped with adjustment mechanisms (such as adjusting the tightness of the conveyor belt through the first and second tension rollers, rotating rods, worm gears and worm gears and other components), intelligent detection modules, etc.
- Working process: The filter paper is discharged from the feeding roller, first becomes soft through the humidification device, then enters the heating device for processing, and then is creased by the creasing mechanism of the roller folding device, and the folding is completed by the paper folding mechanism. The conveying device (such as a belt conveyor) outputs the folded filter paper. During the process, the adjustment mechanism ensures that the conveyor belt is taut to prevent the accumulation of filter paper and improve the transmission efficiency.

Application field:

Filter production: It is a key equipment in the production of automotive engine filters (such as oil filters, air filters, and fuel filters), and is also used in the folding process of filter elements in fields such as air filters and liquid filtration equipment.
- Other material processing: It can handle materials such as glass fiber to meet the molding requirements of different filtration or composite materials.



Advantages and characteristics:

- Automation and efficiency: Reduce manual intervention, achieve continuous production, and some models can reach up to 50% off per minute at the fastest, significantly increasing production capacity.
- Precision and consistency: Through precise roller folding devices and technologies such as temperature control and indentation, the folding accuracy (such as folding height and uniformity of wrinkles) is ensured, and the product consistency is good.
- Flexibility: Some models support multi-specification adjustment to adapt to filter papers of different folding heights and widths, meeting diverse production needs.
- Stability: The intelligent adjustment mechanism (such as the tightness adjustment of the conveyor belt) ensures a smooth production process, reduces the failure rate, and increases the equipment utilization rate.





For instance, in the production of automotive filters, the drum paper folding machine can ensure the stability of the filter paper structure after folding, guarantee the filtration performance of the filter element, and at the same time improve production efficiency and reduce enterprise costs. It is one of the indispensable equipment in modern filter manufacturing.
