High Efficiency Air Filter Making Machine Heavy Duty Car Filter Making Machine Customized

1 set
MOQ
US$1000~100000/set
Price
High Efficiency Air Filter Making Machine Heavy Duty Car Filter Making Machine Customized
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Air Filter Making Machine
Condition: New
Weight (kg): 1000
Place Of Origin: Anhui, China
Brand Name: TC
Warranty: 1 Year
Particle Size: 15
Flow Rate: 3gpm (11.4lpm)
Maximum Pressure: 35-50psi
Highlight:

High Efficiency Air Filter Making Machine

,

Heavy Duty Car Filter Making Machine

,

Car Filter Making Machine Customized

Basic Infomation
Place of Origin: Bengbu, China
Brand Name: TONGCHEN
Model Number: TCZZ~180
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 15~45 work days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Day
Product Description

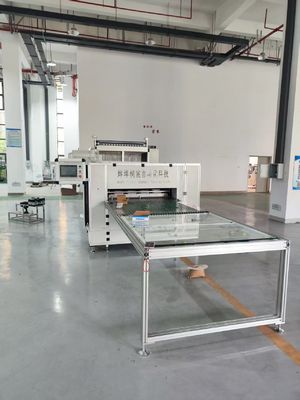

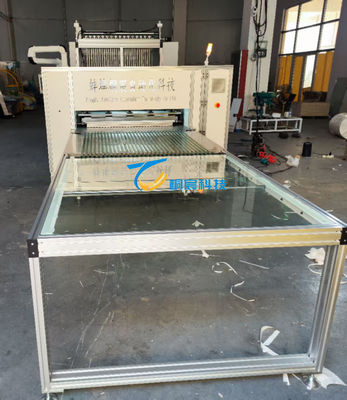

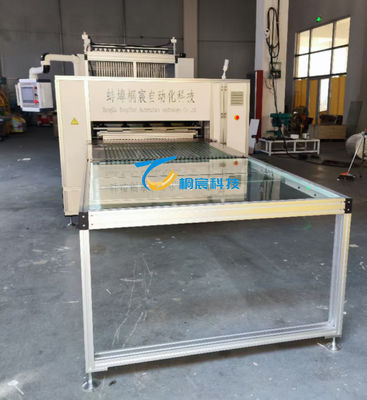

Manufacturing High Efficient Air Filter Pleated Heavy Duty Vehicle Air Filter Making Machine Car Auto Filters



Product name
Zhilu · High-Precision Glass Fiber Production Line without partitions
Products Description
Customized products are available in various types. Each product has its own price. For detailed product information and to inquire about the price, please contact the customer service. The more quantity, the better price.

he Zhilu High-precision glass fiber production line without separators is an intelligent device specially designed for the fields of filter materials, insulating materials and composite materials. The core process is developed in response to the production requirements of glass fiber products without separators. The equipment adopts a full servo drive system and laser positioning technology, which can achieve precise forming of ultra-fine glass fiber filter paper, hot melt adhesive separation and automatic cutting. The production line integrates an intelligent temperature control system and an online detection module, supporting stable production of glass fiber diameters ranging from 5 to 25μm, and is compatible with various raw materials such as E glass and C glass. Through modular design, it is possible to flexibly switch the production of different products such as filter elements, insulating board base materials, and composite reinforcing materials for high-efficiency filters without separators, and to meet the diverse specification requirements of filter material pleats ranging from 40 to 75mm in height and 300 to 1200mm in width. The operation interface is equipped with a 15-inch touch screen, featuring functions such as parameter pre-storage, fault diagnosis, and production capacity statistics, significantly enhancing production efficiency and product consistency.

Product Paramenters
1. Production capacity
- Glass fiber diameter range: 5-25μm
Filter paper width: 300-1200mm (customizable)
Production speed: 8-20 meters per minute
Annual production capacity: Depending on the configuration, it can reach 15,000 to 50,000 tons
2. Process parameters
- Hot melt adhesive separation accuracy: ±0.1mm
Filter material pleat height control: 40-75mm (adjustable)
- Filtration efficiency: The capture efficiency for 0.3μm particles is ≥99.97% (H13 grade standard)
- Applicable temperature: -20℃ to 150℃ (High-temperature type is optional)
3. Equipment Specifications
- Installed power: 300-500kW
- Equipment dimensions: Approximately 30-50 meters (L) ×5-8 meters (W) ×4-6 meters (H)
Weight: Approximately 80 to 150 tons
4. Raw material compatibility
- Types of glass fiber: E glass, C glass, high-silica glass, etc
- Glue type: Hot melt glue, water-based glue (Different gluing modules need to be selected)


Company Profile

High Efficiency Air Filter Making Machine Heavy Duty Car Filter Making Machine Customized 0

 Bengbu Tongchen Automation Technology Equipment Co., Ltd.is a professional company integrating the development, design, and production of filter manufacturing equipment. Located in the beautiful city of Bengbu, known as the "Pearl City"—an important transportation hub, densely populated cultural ancient city, and industrial base. Our main products include paper folding equipment, rotating machines, diesel engines, large air filter production equipment, partitionless and partitioned filter production equipment for the purification industry, pleating machines, and partitionless glass fiber strip production lines. The company will further develop advanced, practical, and efficient models for practical production, leading domestic trends and catering to international standards, making due contributions to China and the global filter industry. We prioritize product quality and service, which are key factors in making your brand more competitive in the global market. Tongchen Technology will become your most reliable mechanical solution provider, partner, and friend in China. We are ready to establish long-term business relationships with your company and welcome friends from all over the world.

Our Advantages
Credit first, customer first, quality satisfaction, punctual delivery, warm reception of new and old customers, accurate understanding of customer needs strict quality process control, timely quality tracking, rapid processing of quality objections, to better than domestic. The factory control standard of international standards meets the expectations and requirements of customers for the physical quality of products. We are willing to cooperate sincerely with you and develop hand in hand.
