Multi-Layer Filter Paper Folding Production Line

1set
MOQ
15000-20000
Price
Multi-Layer Filter Paper Folding Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

HEPA filter pleating machine with warranty

,

multi-layer filter paper production line

,

filter folding machine for HEPA filters
Basic Infomation
Brand Name: Beengbu Tongchen
Model Number: TC-7020
Payment & Shipping Terms
Delivery Time: 15-30days
Payment Terms: ,T/T
Product Description

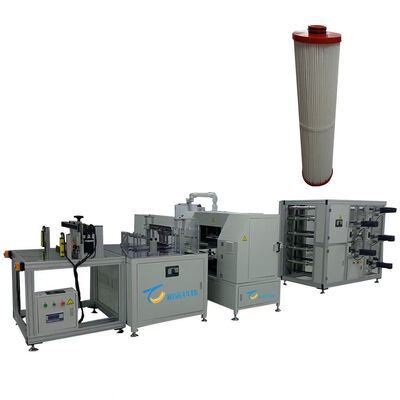

Multi-Layer Filter Paper Folding Production Line
Complete automated production system for manufacturing multi-layer filter paper with precision folding and cutting capabilities.
Technical Specifications
Automatic Paper Feeding Section
Item Specification
Paper Feeding Speed 0.5 - 12 m/min (adjustable)
Adjustable Paper Width 32 - 1000 mm
Adjustable Layers 1 - 5 layers
Max Roll Diameter 450 mm
Power Supply 220V / 50Hz
Feeding Motor 0.2 kW × 5
Air-Expanding Shaft 70 mm
Working Air Pressure 0.6 MPa
Machine Weight 550 kg
Dimensions 2800 × 1880 × 1500 mm
Paper Folding Machine
Item Specification
Max Product Width 1000 mm
Folding Height 5 - 70 mm (varies with material)
Folding Speed 0 - 280 pcs/min
Power Supply 380V / 50Hz
Main Motor Power 0.75 kW × 2
Lifting Motor Power 0.85 kW × 2
Press Plate Motor 0.4 kW
Pre-Heating Power 6 kW
Temperature Range Room temp - 260°C
Working Air Pressure 0.6 MPa
Machine Weight 850 kg
Dimensions 1800 × 1900 × 1655 mm
Vertical Cutting Machine
Item Specification
Cutting Width ≤100-1000 mm
Cutting Knives 4 knives (adjustable)
Motor Power 1.5 kW
Working Air Pressure 0.6 MPa
Power Supply 380V / 50Hz
Machine Weight 580 kg
Dimensions 1200 × 1900 × 1800 mm
Horizontal Cutting Machine
Item Specification
Cutting Width 20-1000 mm
Working Air Pressure 0.6 MPa
Stepping Motor 0.73 kW
Power Supply 220V / 50Hz
Machine Weight 220 kg
Dimensions 1200 × 1800 × 1500 mm
Multi-Layer Filter Paper Folding Production Line 0
Main Features
  • Automatic Servo Paper Feeding with adjustable speed from 0.5-12 m/min
  • 1-5 multi-layer folding capability for different filter material structures
  • Full-servo electronic cam control for precise folding angles & knife adjustments
  • High-speed folding up to 280 pieces/min, depending on folding height
  • Dual heating plates for stable shaping (0-260°C adjustable)
  • Vertical & horizontal cutting integration for efficient product output
  • Wide width compatibility up to 1000 mm
  • Touch screen + PLC control (INOVANCE brand) for easy setting and monitoring
  • Industrial-grade frame and components ensuring durability and long service life
Key Advantages
  • High Productivity - continuous servo feeding and fast folding speed
  • High Stability & Accuracy - electronic cam + synchronous belt structure
  • Multi-Material Compatibility - supports nonwoven, meltblown, composite, paper materials
  • Flexible Production - adjustable folding height, width, and layers
  • Reduced Labor Cost - fully automated forming and cutting process
  • Easy Operation - intuitive 10-inch touch screen
  • Durable Construction - heavy-duty steel frame, upgraded bearings, and plating treatment
  • Smart Control System - dot counting, auto height adjustment, angle adjustments
Multi-Layer Filter Paper Folding Production Line 1 Multi-Layer Filter Paper Folding Production Line 2
Delivery & Service
Multi-Layer Filter Paper Folding Production Line 3
Why Choose Us
Multi-Layer Filter Paper Folding Production Line 4
